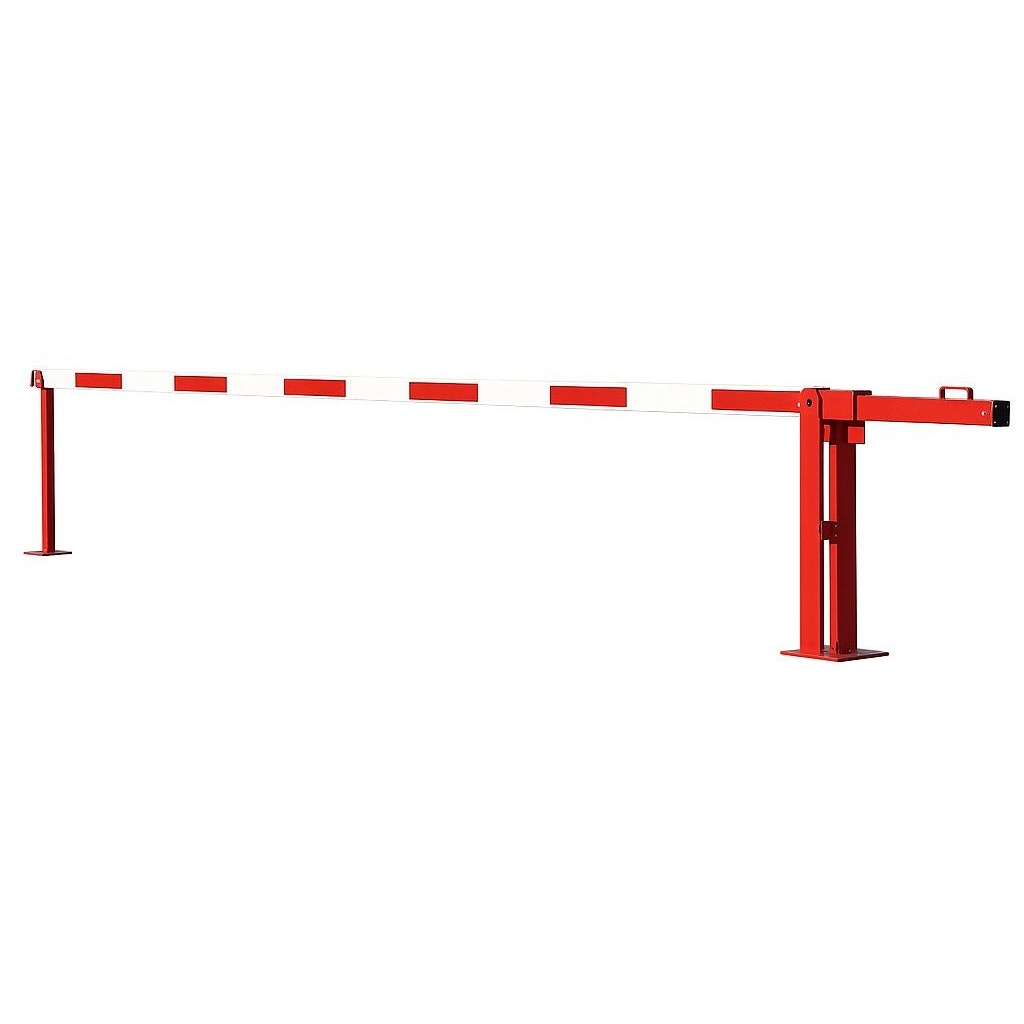

Compact Counterweight Boom Barriers - Premises

Description

The Compact Counterweight Boom Barriers are a practical solution for managing vehicle access at wide entrances. Using a counterweight system, they balance the boom arm for smooth, low-effort operation while maintaining durability and reliability. Ideal for car parks, private estates, and building entrances, they combine sturdy construction with flexible options to suit different

Details

Suitable for outdoor installation, with weather-resistant housing and components.
Helps manage access at private estates, car parks, and building entrances with ease.
Made of robust steel construction with powder-coated finish for long-lasting durability.
Includes counterweight mechanism for smooth, balanced operation.

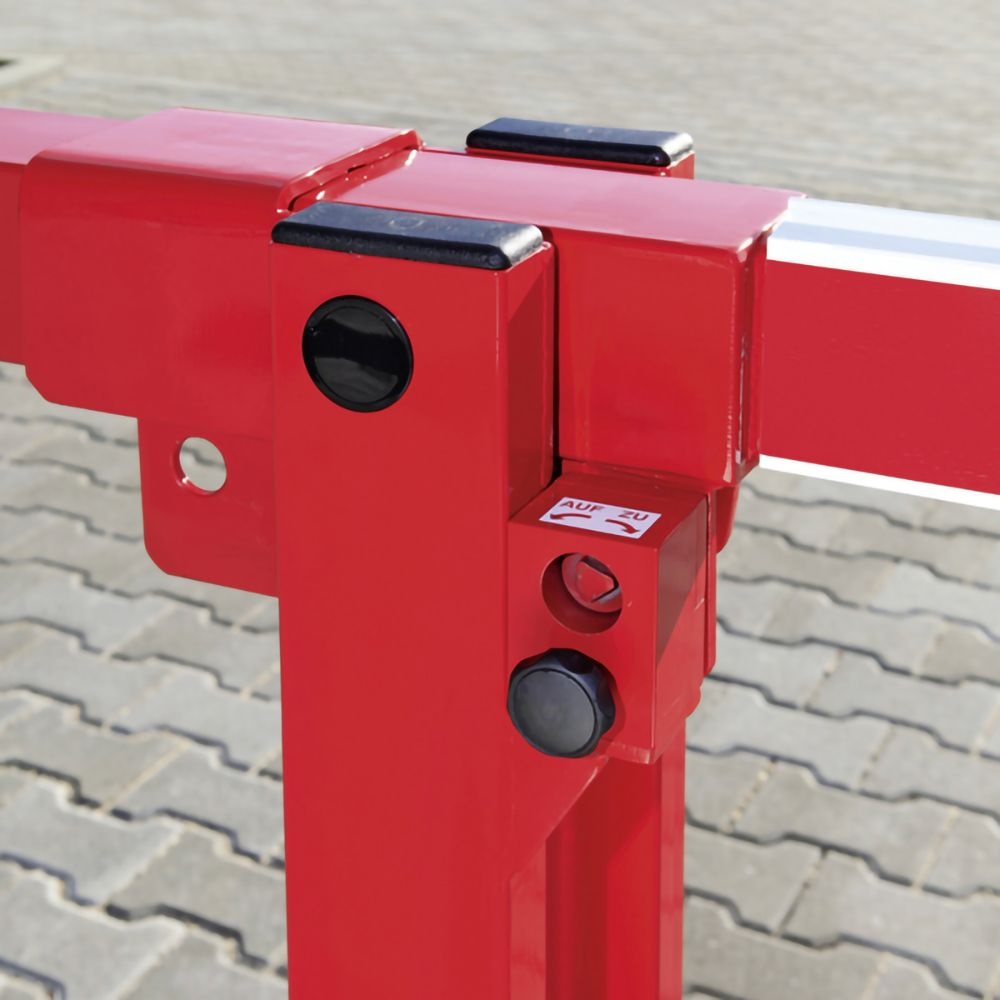

Features lockable housing for added security.
Available in multiple sizes so you can choose the option that best suits your needs.
Offers a choice between integrated support arm or fixed support post, depending on your installation preference.

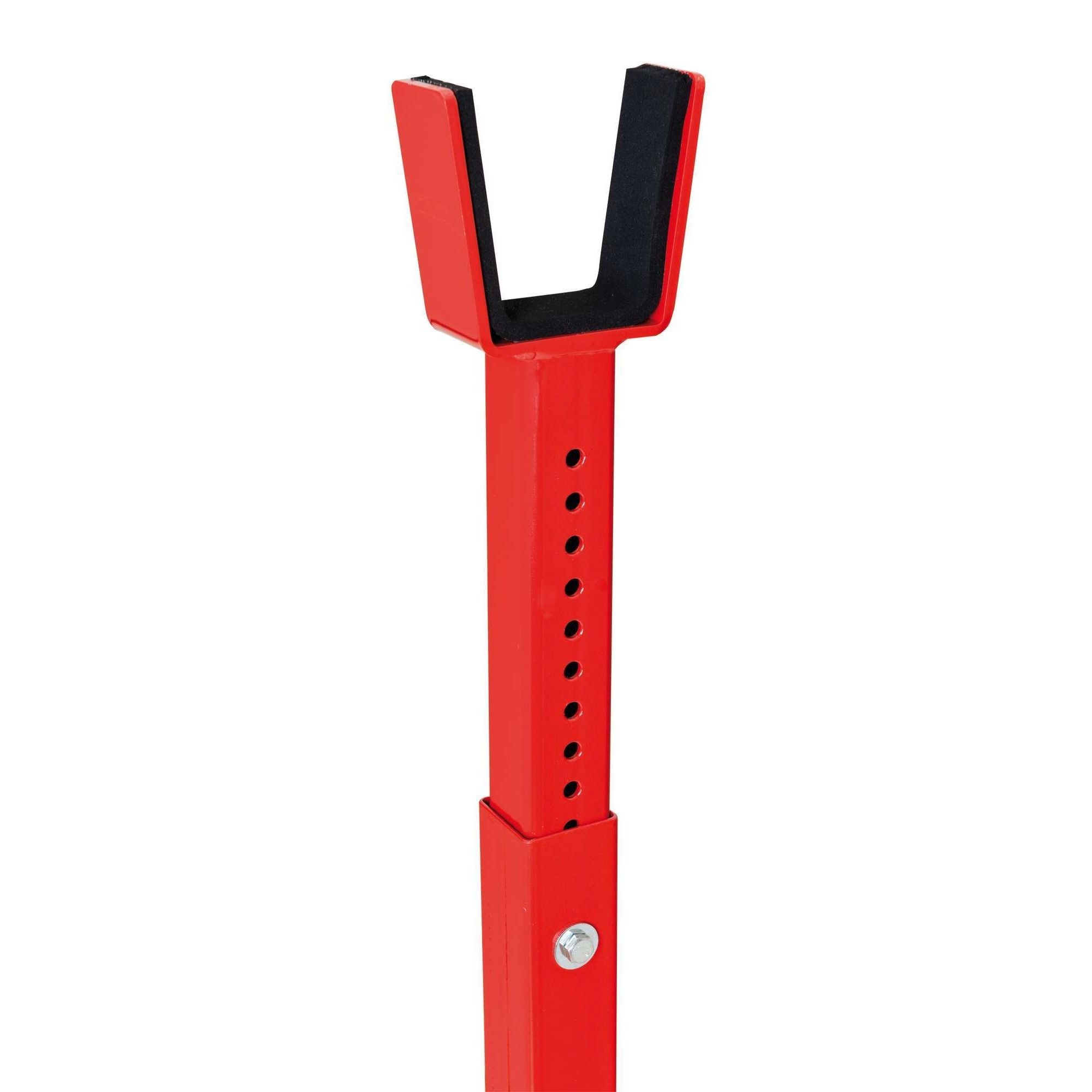

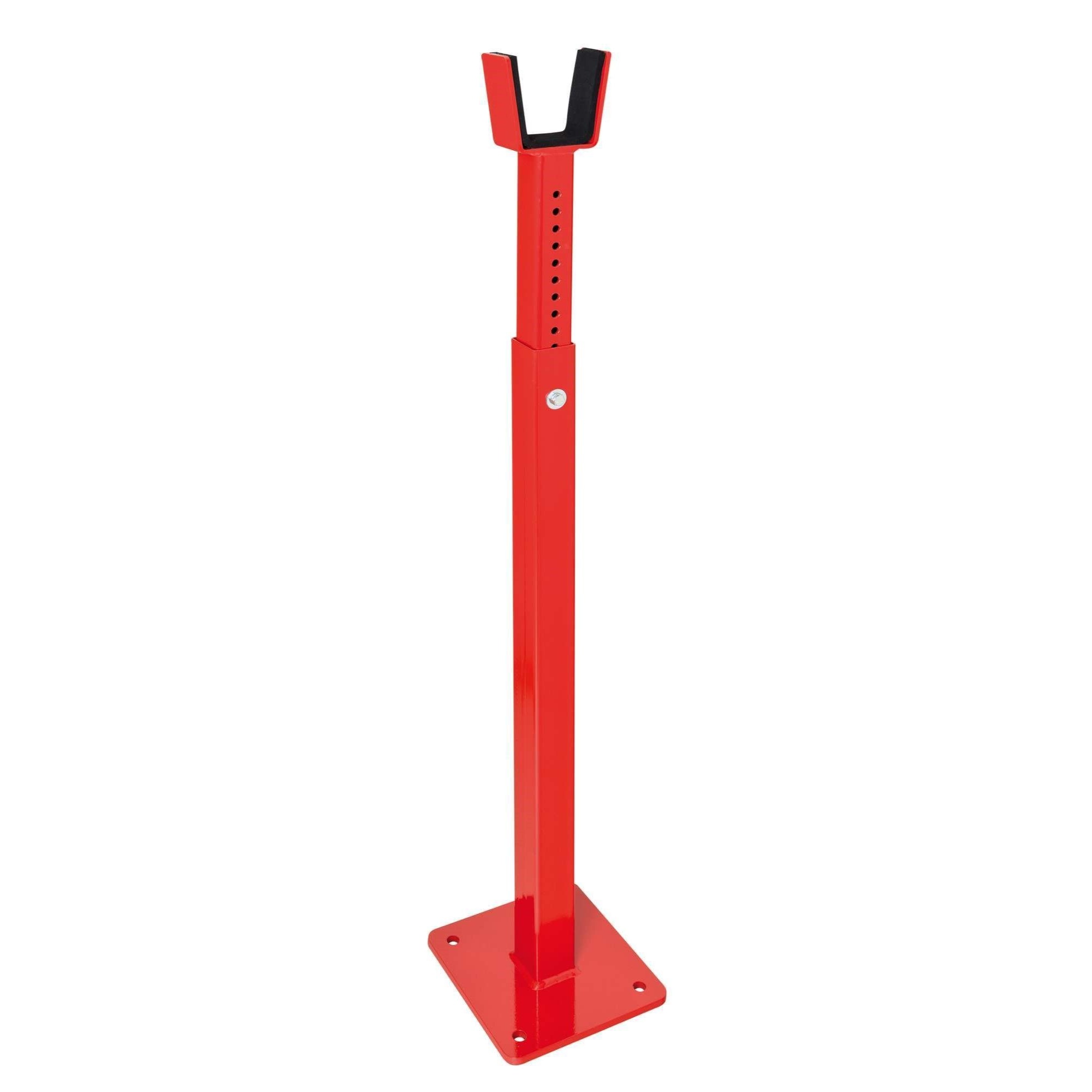

The fixed support post provides a stable resting point at the end of the boom, giving extra support for longer spans and ensuring reliable operation.

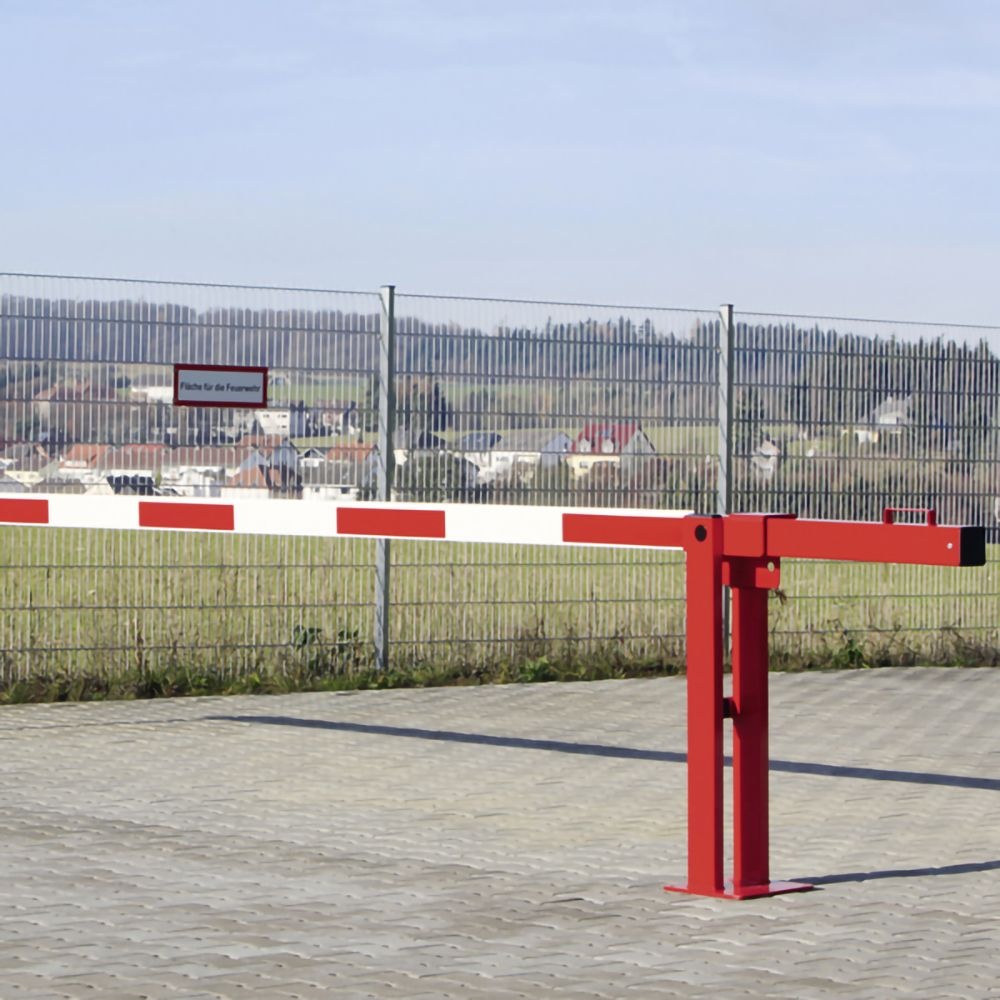

The integrated support arm moves with the boom as it opens and closes, keeping the drive-through space clear while still supporting the barrier when lowered.
Meets DIN 4844 standards for high-visibility colour, ensuring clear awareness in busy environments.
To give you confidence in this product, it is guaranteed for 12 months against manufacturing faults. This excludes fair wear and tear.

Specifications

Overall Width	Arm Width	Clear Width	Post Height	Lifted Barrier Height	Weight
3000	3000	1895	1000	2895	75kg
3500	3500	2395	1000	3395	85kg
4000	4000	2895	1000	3895	95kg
4500	4500	3395	1000	4395	105kg
5000	5000	3895	1000	4895	115kg
5500	5500	4395	1000	5395	125kg
6000	6000	4895	1000	5895	135kg
6500	6500	5395	1000	6395	145kg
7000	7000	5895	1000	6895	155kg

N.B. All dimensions shown in mm.
